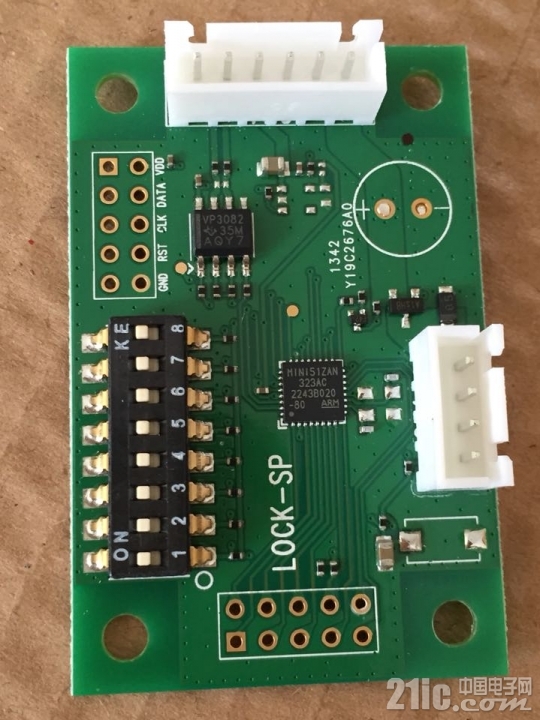

MINI51系列的GPIO中断

/**************************************************************************//**

 * [url=home.php?mod=space&uid=288409]@file[/url]     main.c

 * [url=home.php?mod=space&uid=895143]@version[/url]  V2.10

 * $Date: 15/10/12 8:06p $

 * [url=home.php?mod=space&uid=247401]@brief[/url]    Shows the usage of GPIO interrupt function.

 *

 * @note

 * Copyright (C) 2012 Nuvoton Technology Corp. All rights reserved.

 *

 ******************************************************************************/

#include <stdio.h>

#include "mini51series.h"

#include "GPIO.h"



/**

 * @brief       Port0/Port1 IRQ

 *

 * @param       None

 *

 * [url=home.php?mod=space&uid=266161]@return[/url]      None

 *

 * [url=home.php?mod=space&uid=1543424]@Details[/url]     The Port0/Port1 default IRQ, declared in startup_Mini51.s.

 */

void GPIO01_IRQHandler(void)

{

    /* To check if P1.5 interrupt occurred */

    if (P1->ISRC & BIT5) {

        P1->ISRC = BIT5;

        printf("P1.5 INT occurred. \n");



    } else {

        /* Un-expected interrupt. Just clear all PORT0, PORT1 interrupts */

        P0->ISRC = P0->ISRC;

        P1->ISRC = P1->ISRC;

        printf("Un-expected interrupts. \n");

    }

}





/**

 * @brief       Port2/Port3/Port4 IRQ

 *

 * @param       None

 *

 * @return      None

 *

 * @details     The Port2/Port3/Port4 default IRQ, declared in startup_Mini51.s.

 */

void GPIO234_IRQHandler(void)

{

    /* To check if P2.2 interrupt occurred */

    if (P2->ISRC & BIT2) {

        P2->ISRC = BIT2;

        printf("P2.2 INT occurred. \n");

    } else {

        /* Un-expected interrupt. Just clear all PORT2, PORT3 and PORT4 interrupts */

        P2->ISRC = P2->ISRC;

        P3->ISRC = P3->ISRC;

        P4->ISRC = P4->ISRC;

        printf("Un-expected interrupts. \n");

    }

}





void SYS_Init(void)

{

    /* Unlock protected registers */

    SYS_UnlockReg();



    /*---------------------------------------------------------------------------------------------------------*/

    /* Init System Clock                                                                                       */

    /*---------------------------------------------------------------------------------------------------------*/



    /* Set P5.0 and P5.1 -> XTAL  */

    SYS->P5_MFP &= ~(SYS_MFP_P50_Msk | SYS_MFP_P51_Msk);

    SYS->P5_MFP |= (SYS_MFP_P50_XTAL1 | SYS_MFP_P51_XTAL2);



    /* Enable external 12MHz XTAL, internal 22.1184MHz */

    CLK->PWRCON |= CLK_PWRCON_XTL12M | CLK_PWRCON_IRC22M_EN_Msk;



    /* Waiting for clock ready */

    CLK_WaitClockReady(CLK_CLKSTATUS_XTL_STB_Msk | CLK_CLKSTATUS_IRC22M_STB_Msk);



    /* Switch HCLK clock source to XTL */

    CLK_SetHCLK(CLK_CLKSEL0_HCLK_S_XTAL,CLK_CLKDIV_HCLK(1));



    /* STCLK to XTL STCLK to XTL */

    CLK_SetSysTickClockSrc(CLK_CLKSEL0_STCLK_S_XTAL);



    /* Enable IP clock */

    CLK_EnableModuleClock(UART_MODULE);



    /* Select IP clock source */

    CLK_SetModuleClock(UART_MODULE,CLK_CLKSEL1_UART_S_XTAL,CLK_CLKDIV_UART(1));



    /*---------------------------------------------------------------------------------------------------------*/

    /* Init I/O Multi-function                                                                                 */

    /*---------------------------------------------------------------------------------------------------------*/

    /* Set P0 multi-function pins for UART RXD and TXD */

    SYS->P0_MFP &= ~(SYS_MFP_P01_Msk | SYS_MFP_P00_Msk);

    SYS->P0_MFP |= (SYS_MFP_P01_RXD | SYS_MFP_P00_TXD);



    /* Set P3 multi-function pins for Clock Output */

    SYS->P3_MFP = SYS_MFP_P36_CKO;



    /* To update the variable SystemCoreClock */

    SystemCoreClockUpdate();



    /* Lock protected registers */

    SYS_LockReg();

}



void UART_Init(void)

{

    /*---------------------------------------------------------------------------------------------------------*/

    /* Init UART                                                                                               */

    /*---------------------------------------------------------------------------------------------------------*/

    /* Reset IP */

    SYS_ResetModule(SYS_IPRSTC2_UART_RST_Msk);



    /* Configure UART and set UART Baudrate */

    UART_Open(UART, 115200);



}



/*---------------------------------------------------------------------------------------------------------*/

/* MAIN function                                                                                           */

/*---------------------------------------------------------------------------------------------------------*/

int main (void)

{

    /* Init System, IP clock and multi-function I/O */

    SYS_Init(); //In the end of SYS_Init() will issue SYS_LockReg() to lock protected register. If user want to write protected register, please issue SYS_UnlockReg() to unlock protected register.



    /* Init UART for printf */

    UART_Init();



    printf("\n\nCPU [url=home.php?mod=space&uid=72445]@[/url] %dHz\n", SystemCoreClock);



    printf("+----------------------------------------+ \n");

    printf("|    MINI51 GPIO Interrupt Sample Code   | \n");

    printf("+----------------------------------------+ \n");



    /*-----------------------------------------------------------------------------------------------------*/

    /* GPIO Interrupt Function Test                                                                        */

    /*-----------------------------------------------------------------------------------------------------*/

    printf("\n  P15, P22 are used to test interrupt\n");



    /* Configure P1.5 as Input mode and enable interrupt by rising edge trigger */

    GPIO_SetMode(P1, BIT5, GPIO_PMD_INPUT);

    GPIO_EnableInt(P1, 5, GPIO_INT_RISING);

    NVIC_EnableIRQ(GPIO01_IRQn);



    /*  Configure P2.2 as Quasi-bidirection mode and enable interrupt by falling edge trigger */

    GPIO_SetMode(P2, BIT2, GPIO_PMD_QUASI);

    GPIO_EnableInt(P2, 2, GPIO_INT_FALLING);

    NVIC_EnableIRQ(GPIO234_IRQn);



    /* Waiting for interrupts */

    while (1);



}
