【RISC-V MCU CH32V103测评】 环境配置与第一个工程1
新建开发环境相关这个就不做说明,具体参考这个
https://bbs.21ic.com/icview-3037572-1-1.html
CH32V103 架构

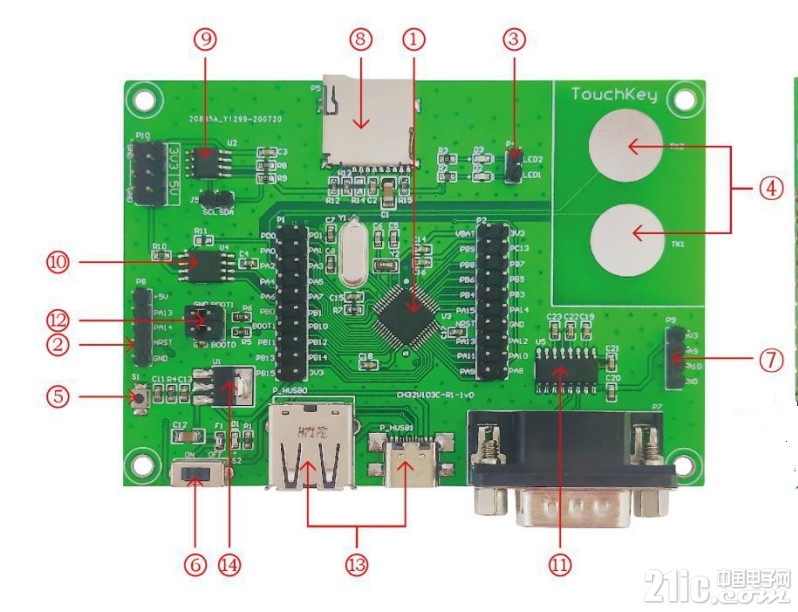

板卡简介
硬件电路 烧录接口与串口

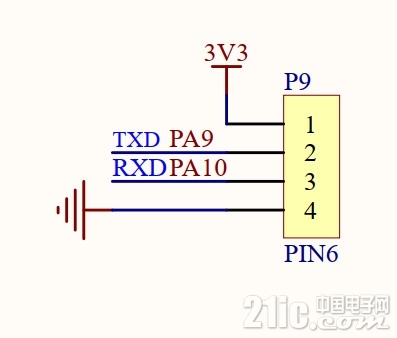

建立完成工程,就自动有一个ADC采用实时串口输出Demo
主函数
#include "debug.h"
/* Global Variable */
u16 TxBuf[1024];
/*******************************************************************************
* Function Name : ADC_Function_Init
* Description : Initializes ADC collection.
* Input : None
* Return : None
*******************************************************************************/
void ADC_Function_Init(void)
{
ADC_InitTypeDef ADC_InitStructure;
GPIO_InitTypeDef GPIO_InitStructure;
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE );
RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1, ENABLE );
RCC_ADCCLKConfig(RCC_PCLK2_Div8);
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;
GPIO_Init(GPIOA, &GPIO_InitStructure);
ADC_DeInit(ADC1);
ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;
ADC_InitStructure.ADC_ScanConvMode = DISABLE;
ADC_InitStructure.ADC_ContinuousConvMode = ENABLE;
ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;
ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;
ADC_InitStructure.ADC_NbrOfChannel = 1;
ADC_Init(ADC1, &ADC_InitStructure);
ADC_DMACmd(ADC1, ENABLE);
ADC_Cmd(ADC1, ENABLE);
ADC_ResetCalibration(ADC1);
while(ADC_GetResetCalibrationStatus(ADC1));
ADC_StartCalibration(ADC1);
while(ADC_GetCalibrationStatus(ADC1));
}
/*******************************************************************************
* Function Name : Get_ADC_Val
* Description : Returns ADCx conversion result data.
* Input : ch: ADC channel.
* ADC_Channel_0: ADC Channel0 selected.
* ADC_Channel_1: ADC Channel1 selected.
* ADC_Channel_2: ADC Channel2 selected.
* ADC_Channel_3: ADC Channel3 selected.
* ADC_Channel_4: ADC Channel4 selected.
* ADC_Channel_5: ADC Channel5 selected.
* ADC_Channel_6: ADC Channel6 selected.
* ADC_Channel_7: ADC Channel7 selected.
* ADC_Channel_8: ADC Channel8 selected.
* ADC_Channel_9: ADC Channel9 selected.
* ADC_Channel_10: ADC Channel10 selected.
* ADC_Channel_11: ADC Channel11 selected.
* ADC_Channel_12: ADC Channel12 selected.
* ADC_Channel_13: ADC Channel13 selected.
* ADC_Channel_14: ADC Channel14 selected.
* ADC_Channel_15: ADC Channel15 selected.
* ADC_Channel_16: ADC Channel16 selected.
* ADC_Channel_17: ADC Channel17 selected.
* Return : val: The Data conversion value.
*******************************************************************************/
u16 Get_ADC_Val(u8 ch)
{
u16 val;
ADC_RegularChannelConfig(ADC1, ch, 1, ADC_SampleTime_239Cycles5 );
ADC_SoftwareStartConvCmd(ADC1, ENABLE);
while(!ADC_GetFlagStatus(ADC1, ADC_FLAG_EOC ));
val = ADC_GetConversionValue(ADC1);
return val;
}
/*******************************************************************************
* Function Name : DMA_Tx_Init
* Description : Initializes the DMAy Channelx configuration.
* Input : DMA_CHx:
* x can be 1 to 7.
* ppadr: Peripheral base address.
* memadr: Memory base address.
* bufsize: DMA channel buffer size.
* Return : None
*******************************************************************************/
void DMA_Tx_Init( DMA_Channel_TypeDef* DMA_CHx, u32 ppadr, u32 memadr, u16 bufsize)
{
DMA_InitTypeDef DMA_InitStructure;
RCC_AHBPeriphClockCmd( RCC_AHBPeriph_DMA1, ENABLE );
DMA_DeInit(DMA_CHx);
DMA_InitStructure.DMA_PeripheralBaseAddr = ppadr;
DMA_InitStructure.DMA_MemoryBaseAddr = memadr;
DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;
DMA_InitStructure.DMA_BufferSize = bufsize;
DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;
DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable;
DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;
DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;
DMA_InitStructure.DMA_Mode = DMA_Mode_Normal;
DMA_InitStructure.DMA_Priority = DMA_Priority_VeryHigh;
DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;
DMA_Init( DMA_CHx, &DMA_InitStructure );
}
/*******************************************************************************
* Function Name : main
* Description : Main program.
* Input : None
* Return : None
*******************************************************************************/
int main(void)
{
u16 i;
Delay_Init();
USART_Printf_Init(115200);
printf("SystemClk:%d\r\n",SystemCoreClock);
ADC_Function_Init();
DMA_Tx_Init( DMA1_Channel1, (u32)&ADC1->RDATAR, (u32)TxBuf, 1024 );
DMA_Cmd( DMA1_Channel1, ENABLE );
ADC_RegularChannelConfig(ADC1, ADC_Channel_2, 1, ADC_SampleTime_239Cycles5 );
ADC_SoftwareStartConvCmd(ADC1, ENABLE);
Delay_Ms(50);
ADC_SoftwareStartConvCmd(ADC1, DISABLE);
for(i=0; i<1024; i++)
{
printf( "%04d\r\n", TxBuf[i] );
Delay_Ms(10);
}
while(1);
}

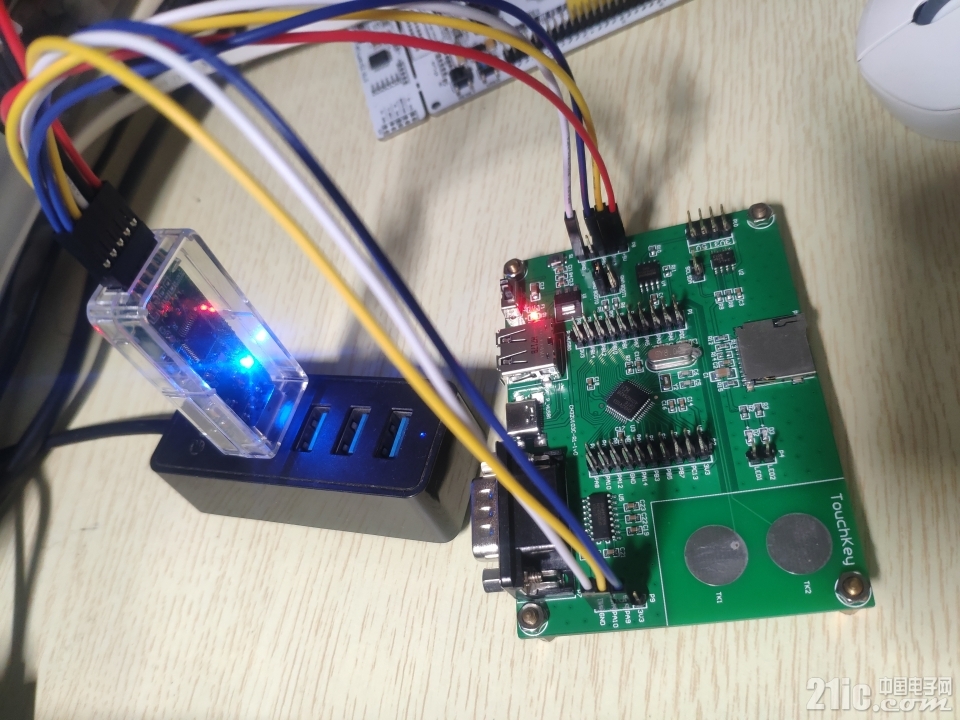

接线图

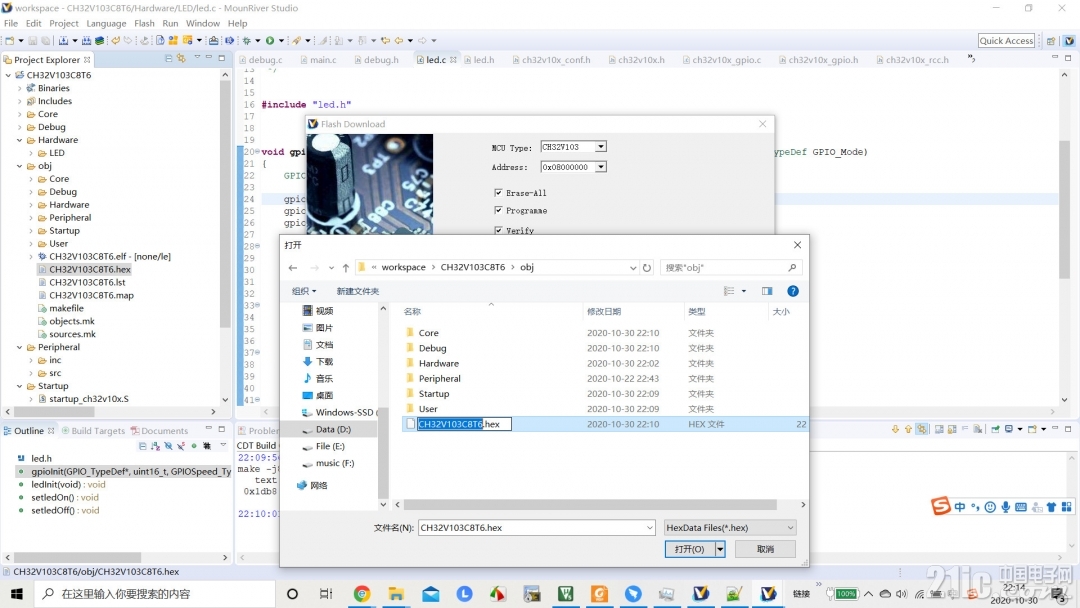

烧录

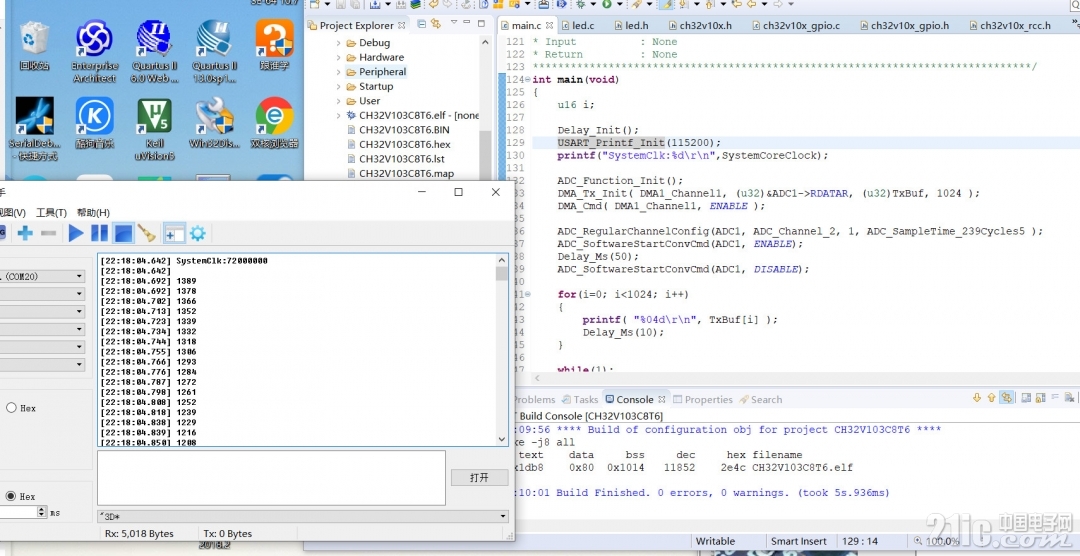

输出效果

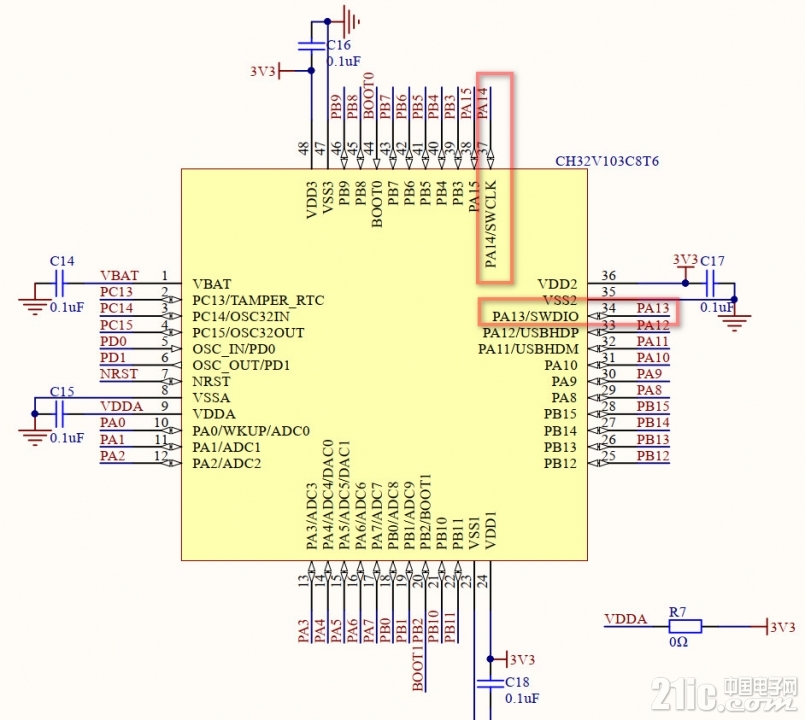

CH32V103电路图说明以及相关应用Demo 例子程序
CH32V103数据手册
--------------------------------------------------------------------------------------------
|
