根据配置的接口电路配置GPIO初始化程序与FSMC初始化程序。
void FSMC_NOR_Init(void)
{
FSMC_InitTypeDef FSMC_InitStructure;
FSMC_NORSRAM_Bank_InitTypeDef FSMC_BankInitStructure;
FSMC_NORSRAM_BankStructInit(&FSMC_BankInitStructure);
FSMC_NORSRAMStructInit(&FSMC_InitStructure);
RCC_AHB3PeriphClockCmd(RCC_AHB3ENR_FSMC, ENABLE);
FSMC_BankInitStructure.FSMC_SMReadPipe = 0;
FSMC_BankInitStructure.FSMC_ReadyMode = 0;
FSMC_BankInitStructure.FSMC_WritePeriod = 15;
FSMC_BankInitStructure.FSMC_WriteHoldTime = 3;
FSMC_BankInitStructure.FSMC_AddrSetTime = 3;
FSMC_BankInitStructure.FSMC_ReadPeriod = 15;
FSMC_BankInitStructure.FSMC_DataWidth = FSMC_DataWidth_16bits;
FSMC_NORSRAM_Bank_Init(&FSMC_BankInitStructure, \
FSMC_NORSRAM_BANK1);
FSMC_InitStructure.FSMC_Mode = FSMC_Mode_NorFlash;
FSMC_InitStructure.FSMC_TimingRegSelect = FSMC_TimingRegSelect_0;
FSMC_InitStructure.FSMC_MemSize = FSMC_MemSize_64MB;
FSMC_InitStructure.FSMC_MemType = FSMC_MemType_FLASH;
FSMC_InitStructure.FSMC_AddrDataMode = FSMC_AddrDataDeMUX;
FSMC_NORSRAMInit(&FSMC_InitStructure);
}
GPIO初始化
void FSMC_GPIO_Init(void)
{
GPIO_InitTypeDef GPIO_InitStructure;
GPIO_StructInit(&GPIO_InitStructure);
RCC_APB2PeriphClockCmd(RCC_APB2Periph_SYSCFG, ENABLE);
RCC_AHBPeriphClockCmd(RCC_AHBENR_GPIOB | RCC_AHBENR_GPIOC | \
RCC_AHBENR_GPIOA | RCC_AHBENR_GPIOD | RCC_AHBENR_GPIOE | \
RCC_AHBENR_GPIOF | RCC_AHBENR_GPIOG, ENABLE);
GPIO_PinAFConfig(GPIOD, GPIO_PinSource4, GPIO_AF_12); //NOE
GPIO_PinAFConfig(GPIOD, GPIO_PinSource5, GPIO_AF_12); //NWE
GPIO_PinAFConfig(GPIOD, GPIO_PinSource6, GPIO_AF_12); //NWAIT
GPIO_PinAFConfig(GPIOD, GPIO_PinSource11, GPIO_AF_12); //A16
GPIO_PinAFConfig(GPIOD, GPIO_PinSource12, GPIO_AF_12); //A17
GPIO_PinAFConfig(GPIOD, GPIO_PinSource13, GPIO_AF_12); //A18
GPIO_PinAFConfig(GPIOD, GPIO_PinSource14, GPIO_AF_12); //D0
GPIO_PinAFConfig(GPIOD, GPIO_PinSource15, GPIO_AF_12); //D1
//省略部分代码
GPIO_PinAFConfig(GPIOF, GPIO_PinSource0, GPIO_AF_12); //A0
GPIO_PinAFConfig(GPIOF, GPIO_PinSource1, GPIO_AF_12); //A1
GPIO_PinAFConfig(GPIOF, GPIO_PinSource2, GPIO_AF_12); //A2
GPIO_PinAFConfig(GPIOF, GPIO_PinSource3, GPIO_AF_12); //A3
//省略部分代码
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_All;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;
GPIO_Init(GPIOD, &GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_InitStructure.GPIO_Mode = GPIO_Mode_FLOATING;
GPIO_Init(GPIOD, &GPIO_InitStructure);
//省略部分代码
}
从选择的片选信号与FSMC外扩存储映像空间可以得出Bank2地址为0x64000000,使用该地址作为读写外部NOR Flash的基地址。
#define NOR_FLASH_START_ADDR ((u32)0x64000000)
#define NOR_FLASH_END_ADDR ((u32)0x67FFFFFF)
//读一个半字
u16 FSMC_NOR_ReadHalfWord(u32 ReadAddr)
{
NOR_WRITE(ADDR_SHIFT(0x00555), 0x00AA);
NOR_WRITE(ADDR_SHIFT(0x002AA), 0x0055);
NOR_WRITE((NOR_FLASH_START_ADDR + ReadAddr), 0x00F0 );
/* exit autoselect (write reset command) */
return (*(vu16*)((NOR_FLASH_START_ADDR + ReadAddr)));
}
//连续读一块半字数据
void FSMC_NOR_ReadBuffer(u16* pBuffer, u32 ReadAddr, u32 NumHalfwordToRead)
{
NOR_WRITE(ADDR_SHIFT(0x0555), 0x00AA);
NOR_WRITE(ADDR_SHIFT(0x02AA), 0x0055);
NOR_WRITE((NOR_FLASH_START_ADDR + ReadAddr), 0x00F0);
/* exit autoselect (write reset command) */
for(; NumHalfwordToRead != 0x00; NumHalfwordToRead--) {
// Read a Halfword from the NOR
*pBuffer++ = *(vu16*)((NOR_FLASH_START_ADDR + ReadAddr));
ReadAddr = ReadAddr + 2;
}
}
读写外部NOR Flash与读写外部SRAM的操作,地址寻址方式是一样的,但NOR Flash的写数据有较大的不同。

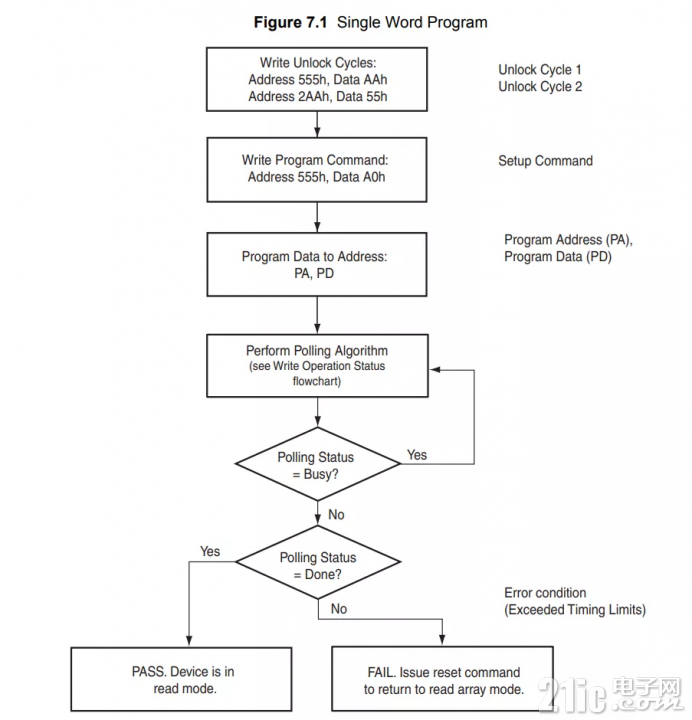

以单个Word编程为例,如下为写单个Word的流程图与实现代码:
NOR_Status FSMC_NOR_WriteHalfWord(u32 WriteAddr, u16 Data)
{
NOR_WRITE(ADDR_SHIFT(0x0555), 0x00AA);
NOR_WRITE(ADDR_SHIFT(0x02AA), 0x0055);
NOR_WRITE(ADDR_SHIFT(0x0555), 0x00A0);
NOR_WRITE((NOR_FLASH_START_ADDR + WriteAddr), Data);
return (FSMC_NOR_GetStatus(Program_Timeout));
}
通过MindMotion的官网下载MM32F3270 lib_Samples: https://www.mindmotion.com.cn/products/mm32mcu/mm32f/mm32f_mainstream/mm32f3270/ 工程路径如下: ~MM32F327x_Samples\LibSamples\FSMC\FSMC_NOR\ 可以看到详细的样例与功能操作。
|
