STM32 F7的MAC层过滤使用+实例代码

只看该作者 · 2023-7-26 18:22

前景描述
我司的以太网实现是LAN8720搭配片上MAC层做的，协议栈用LWIP

这种做法应该还是蛮常见的，反正不是LAN8720就是DP83864，再不然就是硬件协议栈的W5500了

想想还是有MAC层过滤比较好，随手翻了翻它的手册，W5500好像是没得MAC层过滤的

假如数据速率比较高，数据量大，而且外面还有乱七八糟无关的数据往板卡送，我也不知道用这个片子到底好不好

LAN8720也不好改了，就继续用吧

好好在，发给板卡的数据的MAC还是有特征的，我只需要过滤发送方MAC地址的前3个字节，也就是特定的厂家那段

MAC地址的科普知识这里就不过多描述了，我们直奔主题

怎么用STM32 F7的片上MAC做MAC层过滤

写这个的目的，就是我搜了搜，没看见有人写这个MAC层过滤功能，具体代码怎么写才能用

只看该作者 · 2023-7-26 18:22

知识科普-STM32的片上MAC
STM32 F7的MAC层过滤方式有三种(说人话的直白解释，中文手册其实也翻译的不好)
精确过滤(手册上叫单播目标/源地址过滤)
粗糙过滤(手册上叫Hash表过滤)
特殊过滤(广播，组播过滤等等特殊的过滤)
我这里着重说第1种和第3种

STM32 F7可以存4个MAC地址

其中MAC地址0是自己的MAC，其他三个可以用来做过滤

只看该作者 · 2023-7-26 18:23

网络数据包通过PHY进入STM32的MAC，MAC层是可以对目的地址/源地址检查并过滤掉没得用的数据的，默认的HAL库库函数HAL_ETH_Init中
有一个static的函数
static void ETH_MACDMAConfig(ETH_HandleTypeDef *heth, uint32_t err)
会帮你在初始化网络功能时初始化默认的MAC层功能:
关闭源地址过滤
不接收所有数据
接收广播帧
打开目的地地址过滤
单播数据精确过滤
组播数据精确过滤
Hash表过滤关闭

只看该作者 · 2023-7-26 18:23

其他的功能自行研究，我这里捡重要的说

复制

static void ETH_MACDMAConfig(ETH_HandleTypeDef *heth, uint32_t err)

{

  ETH_MACInitTypeDef macinit;

  ETH_DMAInitTypeDef dmainit;

  uint32_t tmpreg = 0;



  if (err != ETH_SUCCESS) /* Auto-negotiation failed */

  {

    /* Set Ethernet duplex mode to Full-duplex */

    (heth->Init).DuplexMode = ETH_MODE_FULLDUPLEX;



    /* Set Ethernet speed to 100M */

    (heth->Init).Speed = ETH_SPEED_100M;

  }



  /* Ethernet MAC default initialization **************************************/

  macinit.Watchdog = ETH_WATCHDOG_ENABLE;

  macinit.Jabber = ETH_JABBER_ENABLE;

  macinit.InterFrameGap = ETH_INTERFRAMEGAP_96BIT;

  macinit.CarrierSense = ETH_CARRIERSENCE_ENABLE;

  macinit.ReceiveOwn = ETH_RECEIVEOWN_ENABLE;

  macinit.LoopbackMode = ETH_LOOPBACKMODE_DISABLE;

  if(heth->Init.ChecksumMode == ETH_CHECKSUM_BY_HARDWARE)

  {

    macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_ENABLE;

  }

  else

  {

    macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_DISABLE;

  }

//这一段是MAC层过滤的设置，下面是DMA的，那个用默认的就可以

  macinit.RetryTransmission = ETH_RETRYTRANSMISSION_DISABLE;

  macinit.AutomaticPadCRCStrip = ETH_AUTOMATICPADCRCSTRIP_DISABLE;

  macinit.BackOffLimit = ETH_BACKOFFLIMIT_10;

  macinit.DeferralCheck = ETH_DEFFERRALCHECK_DISABLE;

  macinit.ReceiveAll = ETH_RECEIVEAll_DISABLE;

  macinit.SourceAddrFilter = ETH_SOURCEADDRFILTER_DISABLE;

  macinit.PassControlFrames = ETH_PASSCONTROLFRAMES_BLOCKALL;

  macinit.BroadcastFramesReception = ETH_BROADCASTFRAMESRECEPTION_ENABLE;

  macinit.DestinationAddrFilter = ETH_DESTINATIONADDRFILTER_NORMAL;

  macinit.PromiscuousMode = ETH_PROMISCUOUS_MODE_DISABLE;

  macinit.MulticastFramesFilter = ETH_MULTICASTFRAMESFILTER_PERFECT;

  macinit.UnicastFramesFilter = ETH_UNICASTFRAMESFILTER_PERFECT;

  macinit.HashTableHigh = 0x0;

  macinit.HashTableLow = 0x0;

  macinit.PauseTime = 0x0;

  macinit.ZeroQuantaPause = ETH_ZEROQUANTAPAUSE_DISABLE;

  macinit.PauseLowThreshold = ETH_PAUSELOWTHRESHOLD_MINUS4;

  macinit.UnicastPauseFrameDetect = ETH_UNICASTPAUSEFRAMEDETECT_DISABLE;

  macinit.ReceiveFlowControl = ETH_RECEIVEFLOWCONTROL_DISABLE;

  macinit.TransmitFlowControl = ETH_TRANSMITFLOWCONTROL_DISABLE;

  macinit.VLANTagComparison = ETH_VLANTAGCOMPARISON_16BIT;

  macinit.VLANTagIdentifier = 0x0;



  /*------------------------ ETHERNET MACCR Configuration --------------------*/

  /* Get the ETHERNET MACCR value */

  tmpreg = (heth->Instance)->MACCR;

  /* Clear WD, PCE, PS, TE and RE bits */

  tmpreg &= ETH_MACCR_CLEAR_MASK;

  /* Set the WD bit according to ETH Watchdog value */

  /* Set the JD: bit according to ETH Jabber value */

  /* Set the IFG bit according to ETH InterFrameGap value */

  /* Set the DCRS bit according to ETH CarrierSense value */

  /* Set the FES bit according to ETH Speed value */

  /* Set the DO bit according to ETH ReceiveOwn value */

  /* Set the LM bit according to ETH LoopbackMode value */

  /* Set the DM bit according to ETH Mode value */

  /* Set the IPCO bit according to ETH ChecksumOffload value */

  /* Set the DR bit according to ETH RetryTransmission value */

  /* Set the ACS bit according to ETH AutomaticPadCRCStrip value */

  /* Set the BL bit according to ETH BackOffLimit value */

  /* Set the DC bit according to ETH DeferralCheck value */

  tmpreg |= (uint32_t)(macinit.Watchdog |

                       macinit.Jabber |

                       macinit.InterFrameGap |

                       macinit.CarrierSense |

                       (heth->Init).Speed |

                       macinit.ReceiveOwn |

                       macinit.LoopbackMode |

                       (heth->Init).DuplexMode |

                       macinit.ChecksumOffload |

                       macinit.RetryTransmission |

                       macinit.AutomaticPadCRCStrip |

                       macinit.BackOffLimit |

                       macinit.DeferralCheck);



  /* Write to ETHERNET MACCR */

  (heth->Instance)->MACCR = (uint32_t)tmpreg;



  /* Wait until the write operation will be taken into account:

     at least four TX_CLK/RX_CLK clock cycles */

  tmpreg = (heth->Instance)->MACCR;

  HAL_Delay(ETH_REG_WRITE_DELAY);

  (heth->Instance)->MACCR = tmpreg;



  /*----------------------- ETHERNET MACFFR Configuration --------------------*/

  /* Set the RA bit according to ETH ReceiveAll value */

  /* Set the SAF and SAIF bits according to ETH SourceAddrFilter value */

  /* Set the PCF bit according to ETH PassControlFrames value */

  /* Set the DBF bit according to ETH BroadcastFramesReception value */

  /* Set the DAIF bit according to ETH DestinationAddrFilter value */

  /* Set the PR bit according to ETH PromiscuousMode value */

  /* Set the PM, HMC and HPF bits according to ETH MulticastFramesFilter value */

  /* Set the HUC and HPF bits according to ETH UnicastFramesFilter value */

  /* Write to ETHERNET MACFFR */

  (heth->Instance)->MACFFR = (uint32_t)(macinit.ReceiveAll |

                                        macinit.SourceAddrFilter |

                                        macinit.PassControlFrames |

                                        macinit.BroadcastFramesReception |

                                        macinit.DestinationAddrFilter |

                                        macinit.PromiscuousMode |

                                        macinit.MulticastFramesFilter |

                                        macinit.UnicastFramesFilter);



   /* Wait until the write operation will be taken into account:

      at least four TX_CLK/RX_CLK clock cycles */

   tmpreg = (heth->Instance)->MACFFR;

   HAL_Delay(ETH_REG_WRITE_DELAY);

   (heth->Instance)->MACFFR = tmpreg;



   /*--------------- ETHERNET MACHTHR and MACHTLR Configuration --------------*/

   /* Write to ETHERNET MACHTHR */

   (heth->Instance)->MACHTHR = (uint32_t)macinit.HashTableHigh;



   /* Write to ETHERNET MACHTLR */

   (heth->Instance)->MACHTLR = (uint32_t)macinit.HashTableLow;

   /*----------------------- ETHERNET MACFCR Configuration -------------------*/



   /* Get the ETHERNET MACFCR value */

   tmpreg = (heth->Instance)->MACFCR;

   /* Clear xx bits */

   tmpreg &= ETH_MACFCR_CLEAR_MASK;



   /* Set the PT bit according to ETH PauseTime value */

   /* Set the DZPQ bit according to ETH ZeroQuantaPause value */

   /* Set the PLT bit according to ETH PauseLowThreshold value */

   /* Set the UP bit according to ETH UnicastPauseFrameDetect value */

   /* Set the RFE bit according to ETH ReceiveFlowControl value */

   /* Set the TFE bit according to ETH TransmitFlowControl value */

   tmpreg |= (uint32_t)((macinit.PauseTime << 16) |

                        macinit.ZeroQuantaPause |

                        macinit.PauseLowThreshold |

                        macinit.UnicastPauseFrameDetect |

                        macinit.ReceiveFlowControl |

                        macinit.TransmitFlowControl);



   /* Write to ETHERNET MACFCR */

   (heth->Instance)->MACFCR = (uint32_t)tmpreg;



   /* Wait until the write operation will be taken into account:

   at least four TX_CLK/RX_CLK clock cycles */

   tmpreg = (heth->Instance)->MACFCR;

   HAL_Delay(ETH_REG_WRITE_DELAY);

   (heth->Instance)->MACFCR = tmpreg;



   /*----------------------- ETHERNET MACVLANTR Configuration ----------------*/

   /* Set the ETV bit according to ETH VLANTagComparison value */

   /* Set the VL bit according to ETH VLANTagIdentifier value */

   (heth->Instance)->MACVLANTR = (uint32_t)(macinit.VLANTagComparison |

                                            macinit.VLANTagIdentifier);



    /* Wait until the write operation will be taken into account:

       at least four TX_CLK/RX_CLK clock cycles */

    tmpreg = (heth->Instance)->MACVLANTR;

    HAL_Delay(ETH_REG_WRITE_DELAY);

    (heth->Instance)->MACVLANTR = tmpreg;



    /* Ethernet DMA default initialization ************************************/

    dmainit.DropTCPIPChecksumErrorFrame = ETH_DROPTCPIPCHECKSUMERRORFRAME_ENABLE;

    dmainit.ReceiveStoreForward = ETH_RECEIVESTOREFORWARD_ENABLE;

    dmainit.FlushReceivedFrame = ETH_FLUSHRECEIVEDFRAME_ENABLE;

    dmainit.TransmitStoreForward = ETH_TRANSMITSTOREFORWARD_ENABLE;

    dmainit.TransmitThresholdControl = ETH_TRANSMITTHRESHOLDCONTROL_64BYTES;

    dmainit.ForwardErrorFrames = ETH_FORWARDERRORFRAMES_DISABLE;

    dmainit.ForwardUndersizedGoodFrames = ETH_FORWARDUNDERSIZEDGOODFRAMES_DISABLE;

    dmainit.ReceiveThresholdControl = ETH_RECEIVEDTHRESHOLDCONTROL_64BYTES;

    dmainit.SecondFrameOperate = ETH_SECONDFRAMEOPERARTE_ENABLE;

    dmainit.AddressAlignedBeats = ETH_ADDRESSALIGNEDBEATS_ENABLE;

    dmainit.FixedBurst = ETH_FIXEDBURST_ENABLE;

    dmainit.RxDMABurstLength = ETH_RXDMABURSTLENGTH_32BEAT;

    dmainit.TxDMABurstLength = ETH_TXDMABURSTLENGTH_32BEAT;

    dmainit.EnhancedDescriptorFormat = ETH_DMAENHANCEDDESCRIPTOR_ENABLE;

    dmainit.DescriptorSkipLength = 0x0;

    dmainit.DMAArbitration = ETH_DMAARBITRATION_ROUNDROBIN_RXTX_1_1;



    /* Get the ETHERNET DMAOMR value */

    tmpreg = (heth->Instance)->DMAOMR;

    /* Clear xx bits */

    tmpreg &= ETH_DMAOMR_CLEAR_MASK;



    /* Set the DT bit according to ETH DropTCPIPChecksumErrorFrame value */

    /* Set the RSF bit according to ETH ReceiveStoreForward value */

    /* Set the DFF bit according to ETH FlushReceivedFrame value */

    /* Set the TSF bit according to ETH TransmitStoreForward value */

    /* Set the TTC bit according to ETH TransmitThresholdControl value */

    /* Set the FEF bit according to ETH ForwardErrorFrames value */

    /* Set the FUF bit according to ETH ForwardUndersizedGoodFrames value */

    /* Set the RTC bit according to ETH ReceiveThresholdControl value */

    /* Set the OSF bit according to ETH SecondFrameOperate value */

    tmpreg |= (uint32_t)(dmainit.DropTCPIPChecksumErrorFrame |

                         dmainit.ReceiveStoreForward |

                         dmainit.FlushReceivedFrame |

                         dmainit.TransmitStoreForward |

                         dmainit.TransmitThresholdControl |

                         dmainit.ForwardErrorFrames |

                         dmainit.ForwardUndersizedGoodFrames |

                         dmainit.ReceiveThresholdControl |

                         dmainit.SecondFrameOperate);



    /* Write to ETHERNET DMAOMR */

    (heth->Instance)->DMAOMR = (uint32_t)tmpreg;



    /* Wait until the write operation will be taken into account:

       at least four TX_CLK/RX_CLK clock cycles */

    tmpreg = (heth->Instance)->DMAOMR;

    HAL_Delay(ETH_REG_WRITE_DELAY);

    (heth->Instance)->DMAOMR = tmpreg;



    /*----------------------- ETHERNET DMABMR Configuration ------------------*/

    /* Set the AAL bit according to ETH AddressAlignedBeats value */

    /* Set the FB bit according to ETH FixedBurst value */

    /* Set the RPBL and 4*PBL bits according to ETH RxDMABurstLength value */

    /* Set the PBL and 4*PBL bits according to ETH TxDMABurstLength value */

    /* Set the Enhanced DMA descriptors bit according to ETH EnhancedDescriptorFormat value*/

    /* Set the DSL bit according to ETH DesciptorSkipLength value */

    /* Set the PR and DA bits according to ETH DMAArbitration value */

    (heth->Instance)->DMABMR = (uint32_t)(dmainit.AddressAlignedBeats |

                                          dmainit.FixedBurst |

                                          dmainit.RxDMABurstLength |    /* !! if 4xPBL is selected for Tx or Rx it is applied for the other */

                                          dmainit.TxDMABurstLength |

                                          dmainit.EnhancedDescriptorFormat |

                                          (dmainit.DescriptorSkipLength << 2) |

                                          dmainit.DMAArbitration |

                                          ETH_DMABMR_USP); /* Enable use of separate PBL for Rx and Tx */



     /* Wait until the write operation will be taken into account:

        at least four TX_CLK/RX_CLK clock cycles */

     tmpreg = (heth->Instance)->DMABMR;

     HAL_Delay(ETH_REG_WRITE_DELAY);

     (heth->Instance)->DMABMR = tmpreg;



     if((heth->Init).RxMode == ETH_RXINTERRUPT_MODE)

     {

       /* Enable the Ethernet Rx Interrupt */

       __HAL_ETH_DMA_ENABLE_IT((heth), ETH_DMA_IT_NIS | ETH_DMA_IT_R);

     }



     /* Initialize MAC address in ethernet MAC */

     ETH_MACAddressConfig(heth, ETH_MAC_ADDRESS0, heth->Init.MACAddr);

}

只看该作者 · 2023-7-26 18:24

这里我就要稍微吐槽一下HAL库了
MAC层过滤的设置没有预留接口出来，有设置MAC地址的函数

static void ETH_MACAddressConfig(ETH_HandleTypeDef *heth, uint32_t MacAddr, uint8_t *Addr)

就不多做一个设置MAC层过滤的函数嘛，连后面用到的宏定义都有~~

木有办法，自己编一个初始化MAC层过滤的函数吧

其实也就是把上面这个ETH_MACDMAConfig函数分离成两个单独的设置函数，再编一个设置MAC层过滤的函数

只看该作者 · 2023-7-26 18:24

开启MAC层过滤的初始化代码

复制

uint8_t ETH_MAC_Setting(ETH_HandleTypeDef *heth)

{

    ETH_MACInitTypeDef macinit;

    /* Ethernet MAC default initialization **************************************/

    macinit.Watchdog = ETH_WATCHDOG_ENABLE;

    macinit.Jabber = ETH_JABBER_ENABLE;

    macinit.InterFrameGap = ETH_INTERFRAMEGAP_96BIT;

    macinit.CarrierSense = ETH_CARRIERSENCE_ENABLE;

    macinit.ReceiveOwn = ETH_RECEIVEOWN_ENABLE;

    macinit.LoopbackMode = ETH_LOOPBACKMODE_DISABLE;

    if (heth->Init.ChecksumMode == ETH_CHECKSUM_BY_HARDWARE)

    {

        macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_ENABLE;

    }

    else

    {

        macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_DISABLE;

    }

    macinit.RetryTransmission = ETH_RETRYTRANSMISSION_ENABLE;          //使能重传

    macinit.AutomaticPadCRCStrip = ETH_AUTOMATICPADCRCSTRIP_ENABLE;          //使能自动去除

    macinit.BackOffLimit = ETH_BACKOFFLIMIT_10;

    macinit.DeferralCheck = ETH_DEFFERRALCHECK_DISABLE;

    macinit.ReceiveAll = ETH_RECEIVEAll_DISABLE; ///不接收所有包

    macinit.SourceAddrFilter = ETH_SOURCEADDRFILTER_NORMAL_ENABLE; //源地址过滤

    macinit.PassControlFrames = ETH_PASSCONTROLFRAMES_BLOCKALL;

    macinit.BroadcastFramesReception = ETH_BROADCASTFRAMESRECEPTION_DISABLE; //广播不接收

    macinit.DestinationAddrFilter = ETH_DESTINATIONADDRFILTER_NORMAL; //目的地址过滤

    macinit.PromiscuousMode = ETH_PROMISCUOUS_MODE_DISABLE; //混乱模式

    macinit.MulticastFramesFilter = ETH_MULTICASTFRAMESFILTER_PERFECT; //多播过滤

    macinit.UnicastFramesFilter = ETH_UNICASTFRAMESFILTER_PERFECT; //单播过滤

    macinit.HashTableHigh = 0x0; //Hash表高位

    macinit.HashTableLow = 0x0; //Hash表低位

    macinit.PauseTime = 0x0;

    macinit.ZeroQuantaPause = ETH_ZEROQUANTAPAUSE_DISABLE;

    macinit.PauseLowThreshold = ETH_PAUSELOWTHRESHOLD_MINUS4;

    macinit.UnicastPauseFrameDetect = ETH_UNICASTPAUSEFRAMEDETECT_ENABLE;

    macinit.ReceiveFlowControl = ETH_RECEIVEFLOWCONTROL_DISABLE; //接收流控

    macinit.TransmitFlowControl = ETH_TRANSMITFLOWCONTROL_DISABLE; //发送流控

    macinit.VLANTagComparison = ETH_VLANTAGCOMPARISON_16BIT;

    macinit.VLANTagIdentifier = 0x0;



    return HAL_ETH_ConfigMAC(heth, &macinit);

}

只看该作者 · 2023-7-26 18:24

默认的MAC层 DMA初始化函数

复制

uint8_t ETH_DMA_Setting(ETH_HandleTypeDef *heth)

{

    ETH_DMAInitTypeDef dmainit;

    /* Ethernet DMA default initialization ************************************/

    dmainit.DropTCPIPChecksumErrorFrame = ETH_DROPTCPIPCHECKSUMERRORFRAME_ENABLE;

    dmainit.ReceiveStoreForward = ETH_RECEIVESTOREFORWARD_ENABLE;

    dmainit.FlushReceivedFrame = ETH_FLUSHRECEIVEDFRAME_ENABLE;

    dmainit.TransmitStoreForward = ETH_TRANSMITSTOREFORWARD_ENABLE;

    dmainit.TransmitThresholdControl = ETH_TRANSMITTHRESHOLDCONTROL_64BYTES;

    dmainit.ForwardErrorFrames = ETH_FORWARDERRORFRAMES_DISABLE;

    dmainit.ForwardUndersizedGoodFrames = ETH_FORWARDUNDERSIZEDGOODFRAMES_DISABLE;

    dmainit.ReceiveThresholdControl = ETH_RECEIVEDTHRESHOLDCONTROL_64BYTES;

    dmainit.SecondFrameOperate = ETH_SECONDFRAMEOPERARTE_ENABLE;

    dmainit.AddressAlignedBeats = ETH_ADDRESSALIGNEDBEATS_ENABLE;

    dmainit.FixedBurst = ETH_FIXEDBURST_ENABLE;

    dmainit.RxDMABurstLength = ETH_RXDMABURSTLENGTH_32BEAT;

    dmainit.TxDMABurstLength = ETH_TXDMABURSTLENGTH_32BEAT;

    dmainit.EnhancedDescriptorFormat = ETH_DMAENHANCEDDESCRIPTOR_ENABLE;

    dmainit.DescriptorSkipLength = 0x0;

    dmainit.DMAArbitration = ETH_DMAARBITRATION_ROUNDROBIN_RXTX_1_1;

    uint8_t res =  HAL_ETH_ConfigDMA(heth, &dmainit);

    if ((heth->Init).RxMode == ETH_RXINTERRUPT_MODE)

    {

        /* Enable the Ethernet Rx Interrupt */

        __HAL_ETH_DMA_ENABLE_IT((heth), ETH_DMA_IT_NIS | ETH_DMA_IT_R);

    }

    return res;

}

只看该作者 · 2023-7-26 18:24

用来设置MAC地址的函数(其实就是把库函数的static函数取出来直接用了)

复制

//heth: HAL句柄

//MacAddr：哪个MAC地址(ETH_MAC_ADDRESS0-3)

//Addr: MAC地址的uint8_t数组

static void ETH_MAC_ADDR_Config(ETH_HandleTypeDef *heth, uint32_t MacAddr, uint8_t *Addr)

{

    uint32_t tmpreg;



    /* Check the parameters */

    assert_param(IS_ETH_MAC_ADDRESS0123(MacAddr));



    /* Calculate the selected MAC address high register */

    tmpreg = ((uint32_t) Addr[5] << 8) | (uint32_t) Addr[4];

    /* Load the selected MAC address high register */

    (*(__IO uint32_t *) ((uint32_t) (ETH_MAC_ADDR_HBASE + MacAddr))) = tmpreg;

    /* Calculate the selected MAC address low register */

    tmpreg = ((uint32_t) Addr[3] << 24) | ((uint32_t) Addr[2] << 16) | ((uint32_t) Addr[1] << 8) | Addr[0];



    /* Load the selected MAC address low register */

    (*(__IO uint32_t *) ((uint32_t) (ETH_MAC_ADDR_LBASE + MacAddr))) = tmpreg;

}

只看该作者 · 2023-7-26 18:25

然后到最最重要的MAC层过滤设置
以MAC1为例

只看该作者 · 2023-7-26 18:25

只看该作者 · 2023-7-26 18:25

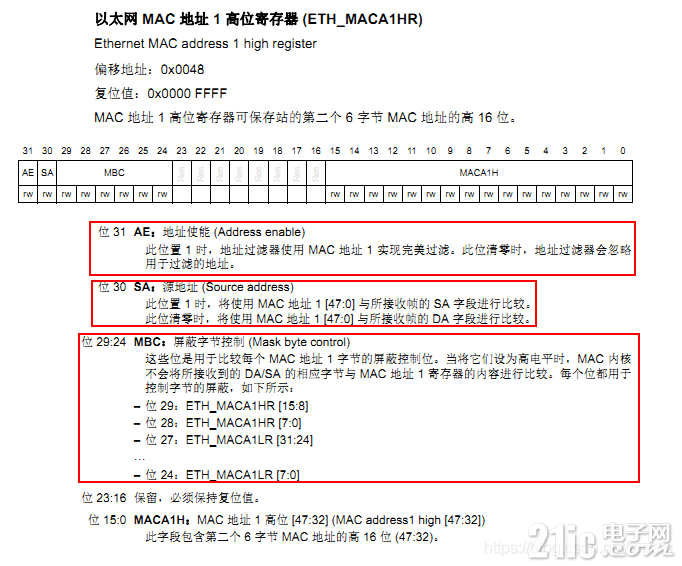

注意看红框的描述
功能很好用，可以过滤源地址/目的地址，还可以做掩码功能

只看该作者 · 2023-7-26 18:25

设置MAC层过滤的代码

复制

static void ETH_MAC_Filter_Setting(ETH_HandleTypeDef *heth,ST_ETH_PAR * para)

{

    //设置本机MAC地址

    ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS0, heth->Init.MACAddr);

    //设置UDP-A的对方MAC地址

    ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS1,para->UDP_A_MAC);

    (heth->Instance)->MACA1HR|=0xC0000000;//需要完全匹配UDP-A的对方MAC才接收

    //设置UDP-B的对方MAC地址

    ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS2,para->UDP_B_MAC);

    (heth->Instance)->MACA2HR|=0xC0000000;//需要完全匹配UDP-A的对方MAC才接收

}

只看该作者 · 2023-7-26 18:26

我这里是**为我的两个UDP精确过滤接收到的源地址
所以AE位设置为1，SA设置为1，MBC全部为0(MAC地址全部检查)

假如我**过滤MAC中特定的厂家字段
例如某个MAC地址
01-02-03-04-05-06

其中01-02-03就是厂家字段

那么代码要这样修改（MBC的第29位，28位，27位置1）
这样MAC层就不会检查MAC地址里后3个字节(04-05-06)
但是会检查前3个字节，也就是厂家字段
这里需要注意MAC地址的字节序

static void ETH_MAC_Filter_Setting(ETH_HandleTypeDef *heth,ST_ETH_PAR * para)
{
//设置本机MAC地址
ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS0, heth->Init.MACAddr);
//设置UDP-A的对方MAC地址
ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS1,para->UDP_A_MAC);
(heth->Instance)->MACA1HR|=0xF8000000;//需要匹配厂家字段
//设置UDP-B的对方MAC地址
ETH_MAC_ADDR_Config(heth, ETH_MAC_ADDRESS2,para->UDP_B_MAC);
(heth->Instance)->MACA2HR|=0xF8000000;//需要匹配厂家字段
}

只看该作者 · 2023-7-26 18:26

然后这些函数的调用顺序按:
1. HAL_ETH_Init
2. ETH_MAC_Setting
3. ETH_DMA_Setting
4. ETH_MAC_Filter_Setting

最后关于HASH表过滤
参考这位兄弟的帖子https://blog.csdn.net/freege9/article/details/91044630

他是F429的，不过原理类似
原理大概是这样的
用你**过滤的MAC传递到一个Hash计算函数里，得到一个值，通过这个值产生“映射”关系来过滤MAC地址，所以这个并不是精确的，因为可能会重复~~

只看该作者 · 2023-7-26 18:26

HASH函数
函数

复制

/ STM32 MACHASH - Copyright (C) 2014-2018 Clive Turvey (sourcer32@gmail.com)

//  All Rights Reserved



#include <windows.h>



#include <stdio.h>

#include <stdlib.h>



typedef unsigned char uint8_t;

typedef unsigned long uint32_t;



uint32_t Rev32(uint32_t x)

{

  uint32_t y;

  int i;



  y = 0;



  for(i=0; i<32; i++)

    if (x & (1 << i))

      y |= 1 << (31 - i);



  return(y);

}



uint32_t MacHash(const uint8_t *Mac) // sourcer32@gmail.com

{

  int i, j;

  uint32_t Crc;



  Crc = 0xFFFFFFFF;



  for(j=0; j<6; j++)

  {

    Crc = Crc ^ (uint32_t)Mac[j];



    for(i=0; i<8; i++)

      if (Crc & 1)

        Crc = (Crc >> 1) ^ 0xEDB88320; // Reversed 0x04C11DB7

      else

        Crc = (Crc >> 1);

  }



  return(Rev32(~Crc) >> 26); // Get High order 6-bit in reversed/inverted CRC

}



uint32_t MacHashFast(const uint8_t *Mac) // sourcer32@gmail.com

{

  static const uint32_t Rev6Tbl[] = {

    0x00,0x20,0x10,0x30,0x08,0x28,0x18,0x38,

    0x04,0x24,0x14,0x34,0x0C,0x2C,0x1C,0x3C,

    0x02,0x22,0x12,0x32,0x0A,0x2A,0x1A,0x3A,

    0x06,0x26,0x16,0x36,0x0E,0x2E,0x1E,0x3E,

    0x01,0x21,0x11,0x31,0x09,0x29,0x19,0x39,

    0x05,0x25,0x15,0x35,0x0D,0x2D,0x1D,0x3D,

    0x03,0x23,0x13,0x33,0x0B,0x2B,0x1B,0x3B,

    0x07,0x27,0x17,0x37,0x0F,0x2F,0x1F,0x3F };



  static const uint32_t Crc32Tbl[] = {

    0x4DBDF21C, 0x500AE278, 0x76D3D2D4, 0x6B64C2B0,

    0x3B61B38C, 0x26D6A3E8, 0x000F9344, 0x1DB88320,

    0xA005713C, 0xBDB26158, 0x9B6B51F4, 0x86DC4190,

    0xD6D930AC, 0xCB6E20C8, 0xEDB71064, 0xF0000000 };



  int i;

  uint32_t Crc;



  Crc = 0;



  for(i=0; i<6; i++)

  {

    Crc = Crc ^ (uint32_t)Mac[i];



    Crc = (Crc >> 4) ^ Crc32Tbl[Crc & 0x0F];  /* lower nibble */

    Crc = (Crc >> 4) ^ Crc32Tbl[Crc & 0x0F];  /* upper nibble */

  }



  return(Rev6Tbl[Crc & 0x3F]);

}



int main(int argc, char **argv)

{

  static const uint8_t Test1[] = { 0x1F, 0x52, 0x41, 0x9C, 0xB6, 0xAF }; // 0x2C

  static const uint8_t Test2[] = { 0xA0, 0x0A, 0x98, 0x00, 0x00, 0x45 }; // 0x07

  static const uint8_t Test3[] = { 0x01, 0x00, 0x5e, 0x00, 0x00, 0x21 }; // 0x24



  printf("MacHash %02X\n", MacHash(Test1));

  printf("MacHash %02X\n", MacHash(Test2));

  printf("MacHash %02X\n", MacHash(Test3));



  printf("MacHashFast %02X\n", MacHashFast(Test1));

  printf("MacHashFast %02X\n", MacHashFast(Test2));

  printf("MacHashFast %02X\n", MacHashFast(Test3));



  return(1);

}

只看该作者 · 2023-7-26 18:27

回到手册

只看该作者 · 2023-7-26 18:27

上面的函数算出来一个数，假如是手册上的那个0x2c,二进制为101100B
换句看得懂的人话···就是：
算出来的数先看第6位
是1的话说明用到的是HASH表高位寄存器
否则用到的是HASH表低位寄存器
然后剩下的5位，转成十进制不是12嘛
如果你**过滤这个MAC
那么你就把对应的HASH表高/低位寄存器的对应位置1，否则置0
这里的0x2c就是要把
HASH表高位寄存器的第12位置1
就可以过滤这条MAC了
然后把你**的MAC地址都按照上面说的方法弄完

只看该作者 · 2023-7-26 18:27

回到这个函数稍微改一下

复制

uint8_t ETH_MAC_Setting(ETH_HandleTypeDef *heth)

{

    ETH_MACInitTypeDef macinit;

    /* Ethernet MAC default initialization **************************************/

    macinit.Watchdog = ETH_WATCHDOG_ENABLE;

    macinit.Jabber = ETH_JABBER_ENABLE;

    macinit.InterFrameGap = ETH_INTERFRAMEGAP_96BIT;

    macinit.CarrierSense = ETH_CARRIERSENCE_ENABLE;

    macinit.ReceiveOwn = ETH_RECEIVEOWN_ENABLE;

    macinit.LoopbackMode = ETH_LOOPBACKMODE_DISABLE;

    if (heth->Init.ChecksumMode == ETH_CHECKSUM_BY_HARDWARE)

    {

        macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_ENABLE;

    }

    else

    {

        macinit.ChecksumOffload = ETH_CHECKSUMOFFLAOD_DISABLE;

    }

    macinit.RetryTransmission = ETH_RETRYTRANSMISSION_ENABLE;          //使能重传

    macinit.AutomaticPadCRCStrip = ETH_AUTOMATICPADCRCSTRIP_ENABLE;          //使能自动去除

    macinit.BackOffLimit = ETH_BACKOFFLIMIT_10;

    macinit.DeferralCheck = ETH_DEFFERRALCHECK_DISABLE;

    macinit.ReceiveAll = ETH_RECEIVEAll_DISABLE; ///不接收所有包

    macinit.SourceAddrFilter = ETH_SOURCEADDRFILTER_NORMAL_ENABLE; //源地址过滤

    macinit.PassControlFrames = ETH_PASSCONTROLFRAMES_BLOCKALL;

    macinit.BroadcastFramesReception = ETH_BROADCASTFRAMESRECEPTION_DISABLE; //广播不接收

    macinit.DestinationAddrFilter = ETH_DESTINATIONADDRFILTER_NORMAL; //目的地址过滤

    macinit.PromiscuousMode = ETH_PROMISCUOUS_MODE_DISABLE; //混乱模式

    macinit.MulticastFramesFilter = ETH_MULTICASTFRAMESFILTER_PERFECTHASHTABLE; //！！多播HASH完美过滤

    macinit.UnicastFramesFilter = ETH_UNICASTFRAMESFILTER_PERFECTHASHTABLE; //！！单播HASH完美过滤

    macinit.HashTableHigh = 0x0; //！！填你最后算完的Hash表高位

    macinit.HashTableLow = 0x0; //！！填你最后算完的Hash表低位

    macinit.PauseTime = 0x0;

    macinit.ZeroQuantaPause = ETH_ZEROQUANTAPAUSE_DISABLE;

    macinit.PauseLowThreshold = ETH_PAUSELOWTHRESHOLD_MINUS4;

    macinit.UnicastPauseFrameDetect = ETH_UNICASTPAUSEFRAMEDETECT_ENABLE;

    macinit.ReceiveFlowControl = ETH_RECEIVEFLOWCONTROL_DISABLE; //接收流控

    macinit.TransmitFlowControl = ETH_TRANSMITFLOWCONTROL_DISABLE; //发送流控

    macinit.VLANTagComparison = ETH_VLANTAGCOMPARISON_16BIT;

    macinit.VLANTagIdentifier = 0x0;



    return HAL_ETH_ConfigMAC(heth, &macinit);

}

大概MAC层过滤就这些东西了
如果有条件弄MAC层过滤真的强烈建议开启，可以大幅减轻协议栈的处理负担，板卡不会因为处理大量无用的数据而白白浪费处理性能。
