[STM32N6] STM32N6的CAN-FD功能和测试

[复制链接]
 楼主| 一路向北lm 发表于 2025-4-3 17:15 | 显示全部楼层 |阅读模式
stm32n, 测试, CAN-FD, dc, TE, TX
本帖最后由 一路向北lm 于 2025-4-3 17:19 编辑

canfd初始化
复制
  1. static void MX_FDCAN1_Init(void)


  2. {



  3.

  4.   /* USER CODE BEGIN FDCAN1_Init 0 */



  5.

  6.   /* USER CODE END FDCAN1_Init 0 */



  7.

  8.   /* USER CODE BEGIN FDCAN1_Init 1 */



  9.

  10.   /* USER CODE END FDCAN1_Init 1 */


  11.   hfdcan1.Instance = FDCAN1;


  12.   hfdcan1.Init.FrameFormat = FDCAN_FRAME_FD_BRS;


  13.   hfdcan1.Init.Mode = FDCAN_MODE_EXTERNAL_LOOPBACK;


  14.   hfdcan1.Init.AutoRetransmission = ENABLE;


  15.   hfdcan1.Init.TransmitPause = DISABLE;


  16.   hfdcan1.Init.ProtocolException = ENABLE;


  17.   hfdcan1.Init.NominalPrescaler = 1;


  18.   hfdcan1.Init.NominalSyncJumpWidth = 50;


  19.   hfdcan1.Init.NominalTimeSeg1 = 149;


  20.   hfdcan1.Init.NominalTimeSeg2 = 50;


  21.   hfdcan1.Init.DataPrescaler = 4;


  22.   hfdcan1.Init.DataSyncJumpWidth = 5;


  23.   hfdcan1.Init.DataTimeSeg1 = 19;


  24.   hfdcan1.Init.DataTimeSeg2 = 5;


  25.   hfdcan1.Init.MessageRAMOffset = 0;


  26.   hfdcan1.Init.StdFiltersNbr = 1;


  27.   hfdcan1.Init.ExtFiltersNbr = 2;


  28.   hfdcan1.Init.RxFifo0ElmtsNbr = 1;


  29.   hfdcan1.Init.RxFifo0ElmtSize = FDCAN_DATA_BYTES_64;


  30.   hfdcan1.Init.RxFifo1ElmtsNbr = 2;


  31.   hfdcan1.Init.RxFifo1ElmtSize = FDCAN_DATA_BYTES_48;


  32.   hfdcan1.Init.RxBuffersNbr = 1;


  33.   hfdcan1.Init.RxBufferSize = FDCAN_DATA_BYTES_12;


  34.   hfdcan1.Init.TxEventsNbr = 4;


  35.   hfdcan1.Init.TxBuffersNbr = 2;


  36.   hfdcan1.Init.TxFifoQueueElmtsNbr = 3;


  37.   hfdcan1.Init.TxFifoQueueMode = FDCAN_TX_FIFO_OPERATION;


  38.   hfdcan1.Init.TxElmtSize = FDCAN_DATA_BYTES_64;


  39.   if (HAL_FDCAN_Init(&hfdcan1) != HAL_OK)


  40.   {


  41.     Error_Handler();


  42.   }


  43.   /* USER CODE BEGIN FDCAN1_Init 2 */



  44.

  45.   /* USER CODE END FDCAN1_Init 2 */



  46.

  47. }
canfd 过滤器配置
复制
  1. /*##-1 Configure the FDCAN filters ########################################*/



  2.

  3.   /* Configure standard ID reception filter to Rx FIFO 0. Only accept ID = FilterID1 */


  4.   FDCAN_FilterTypeDef        sFilterConfig;


  5.   sFilterConfig.IdType       = FDCAN_STANDARD_ID;


  6.   sFilterConfig.FilterIndex  = 0U;


  7.   sFilterConfig.FilterType   = FDCAN_FILTER_DUAL;


  8.   sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO0;


  9.   sFilterConfig.FilterID1    = 0x444;


  10.   sFilterConfig.FilterID2    = 0x444; /* For acceptance, MessageID and FilterID1 must match exactly */


  11.   if (HAL_FDCAN_ConfigFilter(&hfdcan1, &sFilterConfig) != HAL_OK)


  12.   {


  13.     Error_Handler();


  14.   }



  15.

  16.   /* Configure extended ID reception filter to Rx FIFO 1. Only accept ID between FilterID1 and FilterID2. */


  17.   sFilterConfig.IdType       = FDCAN_EXTENDED_ID;


  18.   sFilterConfig.FilterIndex  = 0U;


  19.   sFilterConfig.FilterType   = FDCAN_FILTER_RANGE_NO_EIDM;


  20.   sFilterConfig.FilterConfig = FDCAN_FILTER_TO_RXFIFO1;


  21.   sFilterConfig.FilterID1    = 0x1111111;


  22.   sFilterConfig.FilterID2    = 0x2222222;


  23.   if (HAL_FDCAN_ConfigFilter(&hfdcan1, &sFilterConfig) != HAL_OK)


  24.   {


  25.     Error_Handler();


  26.   }
开启canfd 控制器
复制
  1. /*##-2 Start FDCAN controller (continuous listening CAN bus) ##############*/



  2.

  3.   if (HAL_FDCAN_Start(&hfdcan1) != HAL_OK)


  4.   {


  5.     Error_Handler();


  6.   }
发送CANFD数据
复制
  1. /*##-3 Transmit messages ##################################################*/



  2.

  3.   FDCAN_TxHeaderTypeDef        txHeader;



  4.

  5.   /* Add message to Tx FIFO */


  6.   txHeader.Identifier          = 0x444;


  7.   txHeader.IdType              = FDCAN_STANDARD_ID;


  8.   txHeader.TxFrameType         = FDCAN_DATA_FRAME;


  9.   txHeader.DataLength          = FDCAN_DLC_BYTES_12;


  10.   txHeader.ErrorStateIndicator = FDCAN_ESI_ACTIVE;


  11.   txHeader.BitRateSwitch       = FDCAN_BRS_ON;


  12.   txHeader.FDFormat            = FDCAN_FD_CAN;


  13.   txHeader.TxEventFifoControl  = FDCAN_STORE_TX_EVENTS;


  14.   txHeader.MessageMarker       = 0x52U;


  15.   if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &txHeader, txData0) != HAL_OK)


  16.   {


  17.     Error_Handler();


  18.   }



  19.

  20.   /* Add second message to Tx FIFO */


  21.   txHeader.Identifier          = 0x1111112;


  22.   txHeader.IdType              = FDCAN_EXTENDED_ID;


  23.   txHeader.TxFrameType         = FDCAN_DATA_FRAME;


  24.   txHeader.DataLength          = FDCAN_DLC_BYTES_12;


  25.   txHeader.ErrorStateIndicator = FDCAN_ESI_PASSIVE;


  26.   txHeader.BitRateSwitch       = FDCAN_BRS_ON;


  27.   txHeader.FDFormat            = FDCAN_FD_CAN;


  28.   txHeader.TxEventFifoControl  = FDCAN_STORE_TX_EVENTS;


  29.   txHeader.MessageMarker       = 0xCCU;


  30.   if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &txHeader, txData1) != HAL_OK)


  31.   {


  32.     Error_Handler();


  33.   }



  34.

  35.   /* Add third message to Tx FIFO */


  36.   txHeader.Identifier          = 0x1111113;


  37.   txHeader.IdType              = FDCAN_EXTENDED_ID;


  38.   txHeader.TxFrameType         = FDCAN_DATA_FRAME;


  39.   txHeader.DataLength          = FDCAN_DLC_BYTES_12;


  40.   txHeader.ErrorStateIndicator = FDCAN_ESI_PASSIVE;


  41.   txHeader.BitRateSwitch       = FDCAN_BRS_OFF;


  42.   txHeader.FDFormat            = FDCAN_FD_CAN;


  43.   txHeader.TxEventFifoControl  = FDCAN_STORE_TX_EVENTS;


  44.   txHeader.MessageMarker       = 0xDDU;


  45.   if (HAL_FDCAN_AddMessageToTxFifoQ(&hfdcan1, &txHeader, txData2) != HAL_OK)


  46.   {


  47.     Error_Handler();


  48.   }



  49.

  50.   /* Get tick */


  51.   uint32_t tickstart = HAL_GetTick();



  52.

  53.   /* Wait transmission complete */


  54.  while (HAL_FDCAN_GetTxFifoFreeLevel(&hfdcan1) != hfdcan1.Init.TxFifoQueueElmtsNbr)


  55.   {


  56.     /* Timeout handling */


  57.     if ((HAL_GetTick() - tickstart) > TX_TIMEOUT)


  58.     {


  59.       Error_Handler();


  60.     }


  61.   }
接收canfd数据
复制
  1. /* Check one message is received in Rx FIFO 0 */


  2.   if (HAL_FDCAN_GetRxFifoFillLevel(&hfdcan1, FDCAN_RX_FIFO0) != 1U)


  3.   {


  4.     Error_Handler();


  5.   }



  6.

  7.   /* Retrieve message from Rx FIFO 0 */


  8.   if (HAL_FDCAN_GetRxMessage(&hfdcan1, FDCAN_RX_FIFO0, &rxHeader, rxData) != HAL_OK)


  9.   {


  10.     Error_Handler();


  11.   }



  12.

  13.   /* Compare received RX message to expected data */


  14.   if ((rxHeader.Identifier != 0x444) ||


  15.       (rxHeader.IdType     != FDCAN_STANDARD_ID) ||


  16.       (rxHeader.DataLength != FDCAN_DLC_BYTES_12) ||


  17.       (BufferCmp8b(txData0, rxData, COUNTOF(rxData)) != 0U))


  18.   {


  19.     Error_Handler();


  20.   }



  21.

  22.   /* Check two messages are received in Rx FIFO 1 */


  23.   if (HAL_FDCAN_GetRxFifoFillLevel(&hfdcan1, FDCAN_RX_FIFO1) != 2U)


  24.   {


  25.     Error_Handler();


  26.   }



  27.

  28.   /* Retrieve message from Rx FIFO 1 */


  29.   if (HAL_FDCAN_GetRxMessage(&hfdcan1, FDCAN_RX_FIFO1, &rxHeader, rxData) != HAL_OK)


  30.   {


  31.     Error_Handler();


  32.   }



  33.

  34.   /* Compare received RX message to expected data */


  35.   if ((rxHeader.Identifier != 0x1111112) ||


  36.       (rxHeader.IdType     != FDCAN_EXTENDED_ID) ||


  37.       (rxHeader.DataLength != FDCAN_DLC_BYTES_12) ||


  38.       (BufferCmp8b(txData1, rxData, COUNTOF(rxData)) != 0U))


  39.   {


  40.     Error_Handler();


  41.   }



  42.

  43.   /* Retrieve next message from Rx FIFO 1 */


  44.   if (HAL_FDCAN_GetRxMessage(&hfdcan1, FDCAN_RX_FIFO1, &rxHeader, rxData) != HAL_OK)


  45.   {


  46.     Error_Handler();


  47.   }



  48.

  49.   /* Compare received RX message to expected data */


  50.   if ((rxHeader.Identifier != 0x1111113) ||


  51.       (rxHeader.IdType     != FDCAN_EXTENDED_ID) ||


  52.       (rxHeader.DataLength != FDCAN_DLC_BYTES_12) ||


  53.       (BufferCmp8b(txData2, rxData, COUNTOF(rxData)) != 0U))


  54.   {


  55.     Error_Handler();


  56.   }

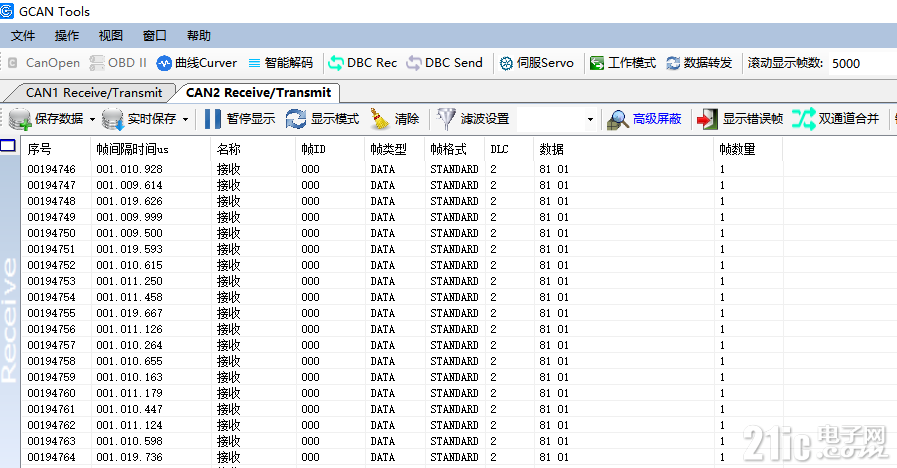

can分析仪数据帧如下：
